Maximilian Weigend*

(*) Institut für Biologie - Systematische Botanik und Pflanzengeographie, Freie Universität Berlin.

Presentado: 03/08/2004
Aceptado: 11/12/2004

Resumen

Observaciones de Loasaceae y Ribes (Grossulariaceae) obtenidos durante estudios de campo en el Perú nos permiten definir el límite suroriental de la zona Amotape Huancabamba con gran precisión. El límite se encuentra entre la zona directamente al NE de Otuzco (departamento La Libertad, prov. Otuzco, sistema Río Chicama: 07° 50,315´ S, 078° 29,076´ W) hacía el abra entre Parcoy y Buldibuyo (departamento La Libertad, provincia Pataz, N del Río Cajas: 08° 04,619´ S, 077° 25,457´ O). Los grupos de plantas típicas de la zona Amotape Huancabamba (grupo N. triphylla, N. ser. Alatae, grupo Ribes andicola, Nasa picta subsp. picta) tienen sus límites suroriental de distribución en el Norte de la provincia de Pataz (La Libertad), y se encuentran reemplazadas por grupos de los Andes Centrales (grupo N. poissoniana, Ribes viscosum) inmediatamente al sur de esta abra.

Key words: biogeografía, Andes, Zona Amotape-Huancabamba

Abstract

Data from Loasaceae and Ribes (Grossulariaceae) obtained during field studies in Peru allow us to define the southeastern limit of the Amotape-Huancabamba Zone with remarkable precision. The limit runs in slightly southeasterly direction from NE of Otuzco (department La Libertad, province Otuzco, Río Chicama drainage system: S 07° 50,315´, W 078° 29,076´) to the mountain pass between Parcoy and Buldibuyo (department La Libertad, province Pataz, N of the Río Cajas: S 08° 04,619´, W 077° 25,457´). The plant groups typical of the Amotape Huancabamba Zone (N. triphylla group, N. ser. Alatae, Ribes andicola group, Nasa picta subsp. picta) find their southeastern distribution limit in the northern part of the province Pataz, and are replaced by their southern counterparts (N. poissoniana group, Ribes viscosum) immediately south of this pass height.

Key words: biogeography, Andes, Amotape-Huancabamba Zone

Introduction

The Amotape Huancabamba Zone is situated between the Río Jubones system in Ecuador and the Río Chamaya system in Peru and includes the area called the Huancabamba Depression where the Andean Cordillera is partly interrupted by the Río Chamaya/Río Marañón system and the Andes have a very low region at the Abra de Porculla (2145 m, department Lambayeque, Duellman, 1979). The Amotape Huancabamba Zone was proposed as a region of particular diversity by P.C. Berry (1982), Young and Reynel (1997) and Hensold (1999) and this observation was underscored by observations on various plant groups by Weigend (2002). According to Weigend (2002) the southern limit of the Amotape-Huancabamba Zone on the Peruvian coast lies south of the Río Chicama drainage system (Trujillo, department La Libertad, Peru), the highlands of Conchucos (Peru, department Ancash, province Corongo) and Tayabamba (Peru, department La Libertad, province Pataz) and its northern limit are the Río Jubones (Ecuador, province El Oro, Machala) and Río Zamora (Ecuador, province Zamora-Chinchipe) drainage systems (Fig. 1).

This view is in contrast to the interpretation that the lowering and partial interruption of the Andean chain (variously called the Northern Peruvian Low, Huancabamba Deflexion, Piura Divide, or Huancabamba Depression) mainly acts as a barrier (Ayers, 1999; Molau, 1988; Prance, 1989; Vuilleumier, 1968).

The primary aims of the present paper are a) complementing the distribution data provided in Weigend (2002) with new observations and b) defining the southeastern limit of the Amotape-Huancabamba Zone.

Methods

Weigend (2002) was based on the revision of copious herbarium material (Dostert & Weigend, 1999; Rodríguez & Weigend, 1999; Weigend, 1998, 2000a, b; Weigend & Rodríguez 1998; Weigend et al., 1998) and field studies in all relevant provinces of Ecuador and the departments Amazonas, Ancash, Apurimac, Arequipa, Ayacucho, Cajamarca, Cuzco, Huánuco, Huancavelica, Ica, Junín, La Libertad, Lambayeque, Lima, Moquegua, Pasco, Piura, Puno, San Martín and Tacna of Peru. Since then additional publications on particular species groups have been published (Jørgensen & Weigend, 2004; Rodriguez et al., 2002; Skrabal et al., 2001; Weigend, 2004; Weigend & Rodriguez, 2002; 2003; Weigend et al., 2004a) and a first phylogeny of Loasaceae subfam. Loasoideae has been provided, elucidating some relationships within the genus Nasa (Weigend et al., 2004b). Additionally, new collections in the department Cajamarca (Provinces Monte Seco, San Miguel, Santa Cruz) were made in 2003, complementing some distribution data. In Weigend (2002) the southeastern limit of the Amotape-Huancabamba Zone was only tentatively defined, since large parts of the crucial area were completely unknown (department La Libertad, province Pataz & Sánchez Carrión; San Martín, province Mariscal Cáceres) or incompletely known (department Ancash, province Síhuas). However, A. Sagástegui A. (Universidad Antenor Orrega, Trujillo) together with E. Rodriguez R. (Universidad Nacional de Trujillo, Trujillo) carried out field studies in that area in 2003 and these collections were complemented by my own field studies in that region in 2004, largely closing this gap.

Results

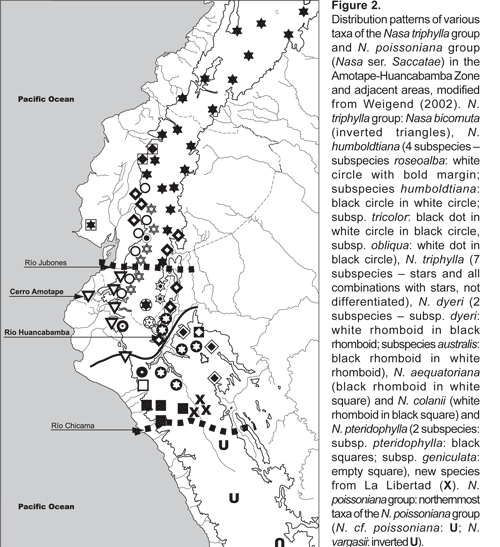

The Nasa triphylla complex has its centre of diversity in the Amotape-Huancabamba Zone (Dostert & Weigend, 1999, Weigend, 2002; Fig. 2). Rodriguez et al. (2002) report the presence of Nasa dyeri (Urb. & Gilg) Weigend subsp. dyeri from Cajamarca, province San Ignacio, a taxon previously only known from Ecuador. Its neighbouring subspecies australis Dostert & Weigend was described from the E part of the Amotape-Huancabamba Zone (Dostert & Weigend, 1999), so that both subspecies of the species are now known from the Amotape-Huancabama Zone, underscoring the fact that the Nasa triyphylla complex likely diversified in this area, and some taxa subsequently migrated northwards (Weigend et al., 2004b).

Moreover, a new southernmost species (Nasa cf. triphylla spec. nov. ined.) of the complex has now been discovered in La Libertad, province Sánchez Carrión (M. Weigend & Ch. Schwarzer 7913 - HUT, B, USM) and province Pataz (A. Sagastegui A. et al. 17255, 17251 - HAO, HUT, B).

The Nasa poissoniana complex (Weigend et al., 2004b; Fig. 2) is a group of some 7 species, around N. poissoniana, N. ferruginea and N. vargasii, all of which were described from the departments Apurímac, Cuzco and Puno. Recent collections brought material closely allied to N. vargasii from the department of Huánuco (province Ambo: Weigend et al. 5463 HUT, B, USM) and a species closely allied to N. poissoniana from La Libertad, province Pataz (M. Weigend & Ch. Schwarzer 8007 - HUT, B, USM) and Ancash, province Piscobamba (M. Weigend et al. 5114 - HUT, B, USM). This shows that the N. poissoniana complex is not restricted to southern Peru at all, but is widespread in interandean valleys to the north of Peru.

Looking more closely at the distribution patterns and ecology of the N. triphylla and the N. poissoniana complexes it becomes clear, that they are ecologically very similar, and their distributions are mutually exclusive, with the N. triphylla complex finding its southern limit on the northern part of the province Pataz and the N. poissoniana complex finding its northern limit in the southern part of the province Pataz. The pass height between Parcoy and Buldibuyo marks the limit between these two groups.

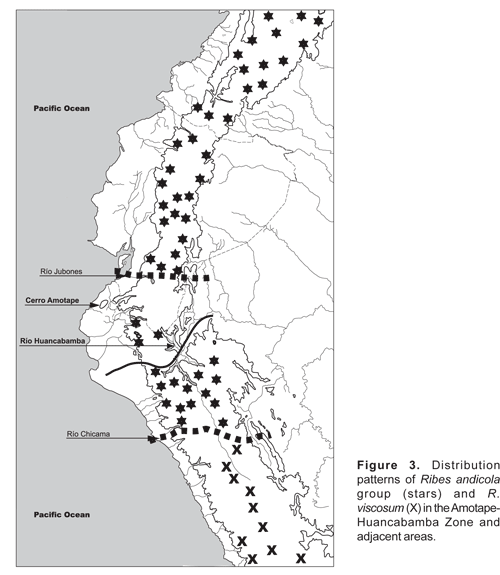

A very similar pair of species/species groups is found in Ribes with the Ribes andicola group widespread from Venezuela to North of Peru, with a centre of diversity (ca. 4 undescribed species) in the Amotape Huancabamba Zone and Ribes viscosum replacing it further south (Weigend & Binder, 2001; Fig. 3).

Nasa picta (Hook.f.) Weigend subsp. picta of Nasa ser. Saccatae is very widespread in northern Peru and occurs in most of the Amotape-Huancabamba Zone, it is replaced by subsp. pamparomasii in the Cordillera Negra (Weigend & Rodriguez, 2001). The southeastern limit of this taxon was until recently believed to be in department Amazonas, province Chachapoyas. However, recent collections provided ample material from department La Libertad, province Pataz (E. Rodriguez R. & V. Medina I. 2567, 2555, A. Sagástegui et al. 17220, 17264, 17417 HAO, HUT, B), while further southeast of that region the taxon seems to be absent.

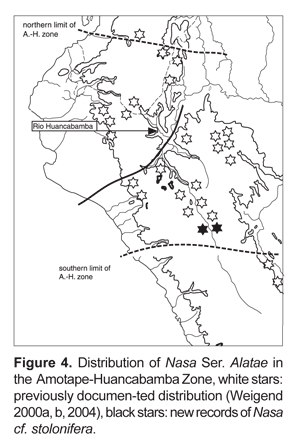

Nasa ser. Alatae is a speciose group of taxa, which is largely restricted to cloud forest habitats on the eastern side of the Andean cordillera in Peru in most of the country. However, there are a few taxa on the western slope and in relic forests in interandean valleys in northern Peru (Weigend, 2000a; 2004; Fig. 4), so that this apparently originally eastern species group has here entered and crossed the Andes in westerly direction and given rise to endemic taxa on the western slope (N. dillonii Weigend, N. sagasteguii Weigend, N. lambayequensis Weigend, N. pongalamesa Weigend).

The southernmost taxa of Nasa ser. Alatae so far reported from interandean valleys were from department Cajamarca, province Celendín (N. urentivelutina Weigend) and department La Libertad, province Bolívar (Nasa stolonifera Weigend). Recent collections provided various collections of a taxon closely allied to N. stolonifera from the department La Libertad, province Sánchez Carrión (M. Weigend & Ch. Schwarzer 7910 HUT, B, USM) and province Bolivar (E. Rodriguez R. & V. Medina I. 2557, 2559, 2610 - HUT, HAO, B), considerably extending the limit southwards. South of that area Nasa ser. Alatae is apparently entirely restricted to the eastern slope of the Andes [Nasa lenta (Urb. & Gilg) Weigend, N. pascoensis Weigend].

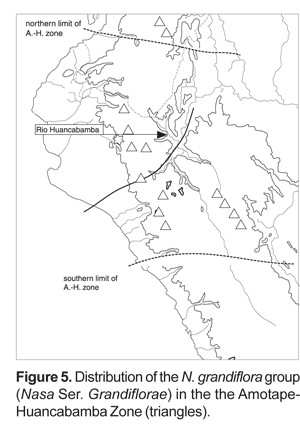

The Nasa grandiflora group is quite speciose in Ecuador and Colombia, and has only three species in Peru (Rodriguez & Weigend, 1999; Weigend & Rodriguez, 2003; Fig. 5), all three species are endemic to the Amotape-Huancabamba Zone in Peru and two of the taxa are endemic to the northernmost outliers of the Cordillera Central in this region (department Amazonas, province Chachapoyas), underscoring the relationships of even the interrupted eastern cordillera with the Northern Andes in this region.

Conclusions

The scattered data here presented on Ribes (Grossulariaceae) and Loasaceae underscore the conclusions drawn by Weigend (2002). There is now additional evidence for the isolation of the flora of the Amotape-Huancabamba Zone and the characteristic distribution patterns indicated in Weigend (2002) are further documented by the new collections. The southern limits of the Amotape-Huancabamba Zone can now be drawn most accurately. The limit runs in slightly southeasterly direction from NE of Otuzco (department La Libertad, province Otuzco, Río Chicama drainage system: S 07° 50,315´, W 078° 29,076´) to the mountain pass between Parcoy and Buldibuyo (department La Libertad, province Pataz, N of the Río Cajas: S 08° 04,619´, W 077° 25,457´). The crucial groups typical of the inneranden part of the Amotape Huancabamba Zone (N. triphylla group, N. ser. Alatae, Ribes andicola group, Nasa picta subsp. picta) find their southeastern distribution limit in the northern part of the province Pataz, and are replaced by their southern counterparts (N. poissoniana group, Ribes viscosum) immediately south of this pass height.

Acknowledgments

I would like to express my sincere gratitude to the following colleagues and friends who helped me in my field studies: Eric Rodríguez R. (Trujillo, Peru), Oliver Mohr, Tilo Henning and Christian Schwarzer (Berlin, Germany). I would also like to thank the following Peruvian colleagues for making collection for me: Asunción Cano E. (USM, Lima), A. Sagástegui A. (HAO, Trujjillo) and Víctor Quipuscoa (HUSA, Arequipa). The financial contributions of the Deutsche Forschungsgemeineschaft (WE 2330/1-1) are gratefully acknowledged.

Literature Cited

Ayers, T. 1999. Biogeography of Lysipomia (Campanulaceae), a high elevation endemic: An illustration of species richness at the Huancabamba Depression, Peru. Arnaldoa 6: 1328.         [ Links ]

Berry, P. E. 1982. The systematics and evolution of Fuchsia sect. Fuchsia (Onagraceae). Ann. Missouri Bot. Gard. 69: 1198.         [ Links ]

Dostert, N. y M. Weigend. 1999. A synopsis of the Nasa triphylla complex (Loasaceae), including some new species and subspecies. Harvard Papers in Botany 4: 439467.         [ Links ]

Duellman, W. E. 1979. The herpetofauna of the Andes: Patterns of distribution, origin, differentiation, and present communities. Pages 1485 in Duellman, W. E. (ed.), The South American Herpetofauna: Its Origin, Evolution, and Dispersal. Univ. Kansas Mus. Nat. Hist. Monogr. 7.         [ Links ]

Hensold, N. 1999. Las angiospermas del Departamento de Cajamarca, Perú. Arnaldoa 6: 141184.         [ Links ]

Jørgensen, P. M. y M. Weigend. 2004. Passiflora inca, a new species of Passifloraceae from Peru and Bolivia. Novon 14: 7983.         [ Links ]

Molau, U. 1988. Scrophulariaceae. Part 1. Calceolarieae. Fl. Neotr. Monogr. 47: 1291.         [ Links ]

Prance, G. T. 1989. American tropical forests. Pp. 99132 en D. W. Godall (ed.), Ecosystems of the World 14b, Tropical rainforest ecosystems: Elsevier, Amsterdam.         [ Links ]

Rodríguez, E. y M. Weigend 1999. Nasa umbraculifera (Loasaceae: Loasoideae), una nueva especies con hojas peltadas para el Perú. Arnaldoa 6: 4956.         [ Links ]

Rodriguez R., E., M. Weigend y N. Dostert. 2002. Sobre la validez de Nasa dyeri subsp. dyeri (Loasaceae) como un nuevo reporte para la Flora Peruana. Arnaldoa 9(1): 2125.         [ Links ]

Skrabal, J., H.-J. Tillich y M. Weigend. 2001. A revision of the Passiflora lobbii group (Passifloraceae), including some new species and subspecies. Harvard Pap. Botany 6(1): 309339.         [ Links ]

Vuilleumier, F. 1968. Population structure of the Asthenes flammulata superspecies (Aves: Furnariidae). Breviora 297: 132.         [ Links ]

Weigend, M. 1998. Nasa y Presliophytum: Los nombres y sus tipos en los nuevos géneros segregados de Loasa Juss. sensu Urb. & Gilg en el Perú. Arnaldoa 5: 159170.         [ Links ]

Weigend, M. 2000a. A revision of the Peruvian species of Nasa ser. Alatae. Nord. J. Bot. 20: 1532.         [ Links ]

Weigend, M. 2000b. Loasaceae. En: L. Andersson & G. Harling (eds.), Flora of Ecuador 64. 192.         [ Links ]

Weigend, M. 2002. Observations on the Biogeography of the Amotape-Huancabamba Zone in Northern Peru. - En: K. Young, C. Ulloa U., J. L. Luteyn & S. Knapp, Plant Evolution and Endemism in Andean South America. - Bot. Review 68(1): 3854.         [ Links ]

Weigend, M., 2004. Four New Species of Nasa ser. Alatae (Loasaceae) in the Amotape-Huancabamba Zone of Peru. Novon 14: 134146.         [ Links ]

Weigend, M. & M. Binder. 2001. Ribes viscosum Ruiz & Pavon (Grossulariaceae), una especie ecológicamente importante de los Andes del Perú y su sinonimia. Arnaloda 8(1): 3944.         [ Links ]

Weigend, M., T. Henning, & C. Schneider. 2004a. Notes on the Systematics, Morphology, Distribution and Pollination of Nasa Ser. Carunculatae (Loasaceae subfam. Loasoideae). - Syst. Bot. 29(1): 765781.         [ Links ]

Weigend, M., Hoot, S., Gottschling, M. 2004b: A Preliminary Phylogeny of Loasaceae subfam. Loasoideae Based on trnL_(UAA) Sequence Data and its Relation to Systematics and Historical Biogeography. ODE 4: 7390.         [ Links ]

Weigend, M. & E. Rodríguez R. 1998. Una nueva especie de Mentzelia (Loasaceae) procedente del Valle Marañon en el Norte del Perú. Arnaldoa 5: 5156.         [ Links ]

Weigend, M. y E. Rodriguez R. 2001. Nasa picta (Hook.f.) Weigend subsp. pamparomasii (Loasaceae), a new subspecies of Nasa picta from Ancash, Peru. Arnaldoa 7(12): 1926.         [ Links ]

Weigend, M., y E. Rodriguez R. 2002. Las especies arbustivas de Nasa Ser. Grandiflorae en el Norte de Perú, con la descripción de una especie nueva de la Abra de Barro Negro (Callacalla). Arnaldoa 9(1): 720.         [ Links ]

Weigend, M. & E. Rodriguez R. 2003. A revision of the the Nasa stuebeliana group [Nasa ser. Saccatae (Urb. & Gilg) Weigend, Loasaceae] with notes on morphology, ecology, and distribution. Bot. Jahrb. Syst. 124(4): 345382.         [ Links ]

Weigend, M., E. Rodríguez R. y N. Dostert. 1998. Nasa insignis y Nasa glandulosissima, dos especies nuevas de Nasa con hojas peltadas. Arnaldoa 5: 151157.         [ Links ]

Young, K. R. y C. Reynel 1997. Huancabamba Region, Peru and Ecuador. Pp. 465469 en S.D. Davis, V.H. Heywood, O. Herrera-MacBryde, J. Villa-Lobos & A.C. Hamilton (eds.), Centers of Plant Diversity, a Guide and Strategy for their Conservation, Vol. 3. The Americas. IUCN Publications Unit, Cambridge.         [ Links ]

Address/Correspondencia

(*) Institut für Biologie - Systematische Botanik und Pflanzengeographie, Freie Universität Berlin, Altensteinstr. 6, D-14195 Berlin, Germany.
