Rev. perú. med. exp. salud publica vol.37 no.1 Lima Jan./Mar 2020

Brief report

Streptomyces sp. 6E3 antimicrobial activity isolated from mineral concentrate

Angela Ampuero, Pharmaceutical chemist

Rosario Rojas, Physician, PhD in Medical Chemistry and Pharmacognosy

Candy Ruiz, chemist, magister in Chemistry

Jasmin Hurtado, microbiologist, Science doctor

1 Laboratorio de Biotecnología Ambiental, Laboratorios de Investigación y Desarrollo, Facultad de Ciencias y Filosofía, Universidad Peruana Cayetano Heredia, Lima, Perú.

2 Unidad de Investigación en Productos Naturales, Laboratorios de Investigación y Desarrollo, Facultad de Ciencias y Filosofía, Universidad Peruana Cayetano Heredia, Lima, Perú.


Antibiotic resistance is one of the most important threats to global health, food security and national development. Currently, different alternatives are being developed to combat microbial strains that present multi-resistance, and one of them is the search for new secondary metabolites with antimicrobial bioactivity.

Among the microorganisms that produce bioactive compounds, Streptomyces are the most important genus of bacteria and produces compounds such as polyketide, peptides and polyketide-peptide hybrids, all of which have been characterized with different biological activities as antibacterial, antifungal and anticancer 1.

Approximately 60% of all known antibiotics against Gram-positive and Gram-negative bacteria have been isolated from Streptomyces, including tetracycline, daptomycin and chloramphenicol 2. Lately, with the purpose of finding new metabolites with antimicrobial activity from these microorganisms (Streptomyces), the isolation of these bacteria has begun to be con ducted from little explored environments such as the sea, plants 3,4 and even minerals 5.

In Peru’s marine environments, species with antibacterial activity have been found in strains of methicillin-resistant Staph ylococcus aureus (MRSA) and vancomycin-resistant Enterococcus faecalis6 and also a strain capable of acting against patho genic strains resistant to beta-lactams 7.

This study aims to determine the antimicrobial activity of cultures and metabolic extracts of Streptomyces sp. 6E3 against different pathogenic enterobacteria, such as Staphylococcus aureus and Candida sp.


Motivation for the study: The increasing microbial resistance due to the indiscriminate use of antibiotics, requires the development of new alternatives, such as the use of microorganisms isolated from poorly studied environments.

Main findings: It has been possible to identify a strain of Streptomyces 6E3 isolated from minerals with the capacity to inhibit methicillin-re sistant Staphylococcus aureus.

Implications: Obtaining microorganisms that could become an alternative treatment would help solve the public health problem we are facing.


Experimental study to analyze the antimicrobial activity of the Streptomyces sp. 6E3 strain. This strain was isolated from minerals and identified previously, phenotypically and genetically 5. The strains confronted with Streptomyces sp. 6E3 were Escherichia coli ATCC 25922, Staphylococcus aureus ATCC 33862, Proteus mirabilis ATCC 12453, Salmonella typhimurium ATCC 25241, Shige lla sonnei ATCC 25931, Candida albicans ATCC 90028, Staphylococcus aureus ATCC 43300 (MRSA) and Staphylococcus aureus (MRSA), from Instituto de Medicina Tropical Alexander Von Humboldt (Lima).

The production phase was determined by means of the antimicrobial activity test, in which the double-layer method of Singh et al. was used. 8) Cultures of Streptomyces sp. 6E3 sown in the center of the XGAL agar from 3, 5, 7 and 10 day growth plates were compared to strains of Escherichia coli ATCC 25922 and Staphylococcus aureus ATCC 33862. During these growth stages, colony growth was observed as well, both microscopically and macroscopically.

We used the double layer method of Singh et al. to screen the antimicrobial activity of the strain (8. The experiment was carried out twice against each pathogenic strain. For the extracts and fractions, the agar diffusion method modified by Rojas et al. was used (9.

Ethyl acetate solvent was used for the preparation of the extracts. Thirty XGAL plates were sown and, with the aid of a mi cropipette, 3 ml of the solvent was added to the culture. The cells moistened by the solvent and the supernatant were swept and collected in Falcon tubes. The content from the mentioned tubes was homogenized with ultrasonic agitation for 15 minutes at room temperature. The tubes with the lysed cells were centrifuged for 10 minutes at 5000 rpm. The supernatant was then removed and the ethyl acetate solvent, evaporated, first in a rotavapor with a pressure of less than 250 millibars and in a water bath at 40 °C, and then with a nitrogen gas stream, until 147 mg of extract was obtained, which was kept at -20 °C until use.

A reverse-phase thin-layer chromatography (TLC Silicagel 60 RP18 from Merck®) with a mobile phase of acetonitrile (water in a ratio of 2:1) was performed on this extract to observe the number of compounds under a UV lamp at 254 nm and 366 nm. In addition, an antibiogram was performed by the diffusion method with discs to observe whether the desired antimicrobial effect was still present.

We used a glass column packed with silica gel RP60 from Merck®, pre-washed with methanol for the extract fractionation. 50 mg of the extract were dissolved in 400 uL ethyl acetate. The mobile phases were 20 mL of acetonitrile and water in ratios of 1:1 (v/v), 1:2, 6:4, 7:3, 8:2, 9:1 and 10:0. The fractions were collected in test tubes up to a volume of 4 mL and were subjected to reverse-phase thin-layer chromatography using an acetonitrile mobile phase: water, in a ratio of 3:1.

The chromatographies were observed under UV light of 366 nm. The fractions that presented similar chromatographic profiles were collected and the solvent was removed by means of the rotary evaporator. Finally, six fractions named A, B, C, D, E and F were obtained. A thin layer chromatography and an antibiogram, according to the disc diffusion method, were con ducted again on the six fractions, to observe which of the fractions had the antimicrobial effect.

The method of Wiegan et al.10) was used to determine the minimum inhibitory concentration (MIC). As positive control, vanco mycin was used for MRSA strains, and penicillin for Staphylococcus aureus, which ranged from 120 to 0.06 ug/mL. The negative control was a Mueller Hinton broth inoculated with a standard strain; the blank one was a sterile broth. The six fractions were dissolved in 400 uL dimethyl sulfoxide (DMSO) to prepare stock solutions, and make the respective dilutions. The amounts of the fractions used to make the stock solutions were as follows: 0.5 mg of the B fraction; 0.5 mg of the C fraction; 0.5 mg of the D fraction; 2 mg of the E fraction; and 1 mg of the F fraction.

The microplate was incubated at 37 °C for 24 hours. The results were obtained by two methods: a) triphenyltetrazolium chloride was used, in which the color change of the microwell contents to red indicated microbial growth, and b) the micro plate was placed in an ELISA reader, in which only turbidity was measured. The MIC was found by means of absorbance versus concentration curves, according to the methodology of Devienne et al. 11)

Descriptive statistical analysis was performed to analyze the results of antimicrobial activity tests by the double layer and disc diffusion method.


Antimicrobial activity was observed in the 7- and 10-day cultures, which was related to the macroscopic observation of a red dish substance in the colony, while microscopically spores were observed, indicating the end of its mycelial phase (Figure 1).

Figure 1 A) Determination of the production phase. Macroscopic observation of the Streptomyces sp. 6E3 colony at seven days. B) Antimicrobial activity of the strain against Staphylococcus aureus at seven days.

In screening with Staphylococcus aureus ATCC 33862, Staphylococcus aureus ATCC 43300 (MRSA) and Staphylococcus au reus clinical strain (MRSA), inhibition halos from 21.5 mm to 42 mm in diameter were observed. All other strains were found to have inhibition halos of 1.5 mm to 3 mm, so the three Staphylococcus aureus strains were continued.

An extract of 141.9 mg was obtained, from which six fractions named A, B, C, D, E and F were obtained and six chromato graphic spots numbered 1, 2, 3, 4, 5 and 6, respectively, could be identified. The thin layer chromatography performed on the fractions corroborated the presence of the same chromatographic spots present in the raw extract (Figure 2).

Figure 2 Thin layer chromatography of the six fractions observed under UV lamp at A) 254 nm and B) 366 nm

The antibacterial activity of the fractions was determined and inhibition halos of 8 to 15 mm were observed against Staphylo coccus aureus strains. The D fraction showed the best activity, as well as a lower MIC unlike the rest of the fractions (Table 1 and Figure 3). The A fraction did not show any activity with the disk diffusion method, which is why the MIC was not determined.

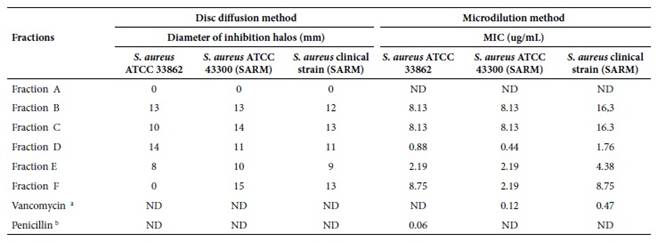

Table 1 Antimicrobial activity of Streptomyces sp. 6E3 extract fractions against Staphylococcus aureus strains according to the disc diffusion and microdilution method

ND: not determined; MIC: minimum inhibitory concentration

a Used as a positive control for the methicillin-resistant S. aureus strain

b Used as a positive control for the S. aureus ATCC 33862 strain

Figure 3 Minimum inhibitory concentration of the five fractions against Staphylococcus aureus ATCC 43300 (SARM)


Bioactive compounds are mostly produced as secondary metabolites and some of them may also be pigments 12. Many Strep tomyces produce pigmented compounds with antimicrobial activity, such as the antibiotics actinorhodin (13) and roseoflavin 14). The reddish coloration observed in the seven-day cultures may be related to the production of some antimicrobial com pound produced by this bacterium.

The Streptomyces strain used in this investigation is of mineral origin, specifically from a concentrate of arsenopyrite 5. It is evident that mining environments are very important for the search of strains with potential bioactivity, the same has been demonstrated in a study, in which Pleurostomophora sp. isolated from minerals produced anti-inflammatory compounds (15.

Using the double-layer method (Table 1) it was observed that the Streptomyces strain, although it showed inhibition of the gram-negative strains’ growth, greater activity was obtained against the group of gram-positive strains which were represented by the three strains of Staphylococcus aureus, including those resistant to methicillin. Streptomyces have been isolated from poorly studied environments, such as the marine environment. Strain RT 408, which produces a polycleotide 16, and coral associated Streptomyces17, which inhibits gram-positive strains, including MRSA, have been isolated.

The extraction process was carried out by the surface sweeping of the culture plate, and it is possible that method facilitated recovery of the metabolites released by the bacteria into the environment or the ones contained within the cells.

In the case of this strain, at least six chromatographic spots have been visualized by means of thin

layer chromatography (Figure 2). Many of the species of the genus Streptomyces produce more than one metabolite depending on the product ob tained, which is related to the solvent used and the carrying capacity according to its polarity and that of the compounds 18,19. From the metabolites found, only some would have antimicrobial activity. Streptomyces coelicolor, in addition to producing

actinorhodin, also produces other compounds with antimicrobial activity 13 and Streptomyces violaceusniger produces an antibacterial and antifungal compound 20.

The results obtained from the fractions’ MIC test show that the D fraction is the one with the

highest antimicrobial activity and concentration. Two chromatographic spots in this fraction were separated, this indicates a higher concentration of active metabolites with antimicrobial activity against Staphylococcus aureus strains.

The extract from Streptomyces sp. ERI-3 (compound isolated from Streptomyces sp) has been reported to produce inhibition of Staphylococcus aureus with a MIC of 0.25 mg/mL 19. SPG278 has a MIC of 256 ug/mL against Staphylococcus aureus (N6) and the extract of marine-related Streptomyces M10-77 has a MIC de 7.9 ug/mL 6; whereas, the D fraction of Streptomyces sp. 6E3 produced a MIC of 0.44 ug/mL against Staphylococcus aureus ATCC 43300 (MRSA).

The number of test repetitions is considered as one of the limitations of the study. It could not be determined whether the antimi crobial activity of the extract was in a compound within the cell or was excreted. Since several secondary metabolites may be present in each fraction of the extract, it is not clear whether the inhibition was due to the combined action of these metabolites or just by one of them.

In conclusion, Streptomyces sp. 6E3 showed increased antimicrobial activity against Staphylococcus aureus ATCC 33862 and MRSA strains.


1. Sottorff I, Wiese J, Lipfert M, Preußke N, Sönnichsen FD, Imhoff JF. Different secondary metabolite profiles of phylogenetically almost identical Streptomyces griseus strains originating from geographically remote locations. Microorganisms. 2019;7(6). pii: E166. [ Links ]

2. Klementz D, Döring K, Lucas X, Telukunta KK, Erxleben A, Deubel D, et al. StreptomeDB 2.0-an extended resource of natural products produced by streptomycetes. Nucleic Acids Res. 2015;44(D1):D509-D14. [ Links ]

3. Liang L, Haltli BA, Kerr RG. Draft Genome Sequence of Streptomyces sp. Strain, an Antibiotic Producer Isolated from Marine Sediment in Prince Edward Island, Canada. Microbiol Resour Announc. 2019;8(35):e00870-19. [ Links ]

4. Qi D, Zou L, Zhou D, Chen Y, Gao Z, Feng R, et al. Taxonomy and Broad-Spectrum Antifungal Activity of Streptomyces sp. SCA3-4 Isolated From Rhizosphere Soil of Opuntia stricta. Front Microbiol. 2019;10:1390. [ Links ]

5. Hurtado J, Pacheco SL, Sheen P, Ugarte D. Actinobacteria isolated from Mineral Ores in Peru. J Microbiol Biotechnol Food Sci. 2019;2019:366-70. [ Links ]

6. León J, Aponte JJ, Rojas R, Cuadra D, Ayala N, Tomás G, et al. Estudio de actinomicetos marinos aislados de la costa central del Perú y su actividad antibacteriana frente a Staphylococcus aureus meticilina resistentes y Enterococcus faecalis vancomicina resistentes. Rev Peru Med Exp Salud Publica. 2011;28(2):237-46. [ Links ]

7. Navarro ML, León J, Huamán M, De Amat C, Morales M, Flores L, et al. Identificación de un Complejo Antimicrobiano Natural, producido por Streptomyces californicus 13A2 inhibidor de Bacterias B-Lactámicos Resistentes de Origen Hospitalario aisladas del Instituto Nacional Materno Perinatal de Lima, Perú. Vitae. 2014;21:S59. [ Links ]

8. Singh LS, Baruah I, Bora T. Actinomycetes of Loktak habitat: isolation and screening for antimicrobial activities. Biotechnology. 2006;5(2):217-21. [ Links ]

9. Rojas JJ, García AM, López AJ. Evaluación de dos metodologías para determinar la actividad antimicrobiana de plantas medicinales. Bol latinoam Caribe plantas med aromát. 2005;4(2):28-32. [ Links ]

10. Wiegand I, Hilpert K, Hancock RE. Agar and broth dilution methods to determine the minimal inhibitory concentration (MIC) of antimicrobial substances. Nat Protoc. 2008;3(2):163-75. [ Links ]

11. Devienne KF, Raddi MSG. Screening for antimicrobial activity of natural products using a microplate photometer. Braz J Microbiol. 2002;33(2):166-8. [ Links ]

12. Rao MPN, Xiao M, Li W-J. Fungal and Bacterial Pigments: Secondary Metabolites with Wide Applications. Front Microbiol. 2017;8(1113). [ Links ]

13. Nodwell JR. Microbe Profile: Streptomyces coelicolor: a burlesque of pigments and phenotypes. Microbiology. 2019;165(9):953-5. [ Links ]

14. Otani S, Takatsu M, Nakano M, Kasai S, Miura R. Roseoflavin, a new antimicrobial pigment from Streptomyces. J Antibiot (Tokyo). 1974;27(1):88-9. [ Links ]

15. Stierle AA, Stierle DB, Girtsman T, Mou T, Antczak C, Djaballah H. Azaphilones from an Acid Mine Extremophile Strain of a Pleurostomophora sp. J Nat Prod. 2015;78(12):2917-23. [ Links ]

16. Sujatha P, Raju KVVSNB, Ramana T. Studies on a new marine streptomycete BT-408 producing polyketide antibiotic SBR-22 effective against methicillin resistant Staphylococcus aureus. Microbiol Res. 2005;160(2):119-26. [ Links ]

17. Ubillus JA, Quispe JL, Durán RR, Trujillo SM, Salazar LL. Actividad antimicrobiana y sinérgica de metabolitos producidos por Streptomyces erythrogriseus M1077 de origen marino. RSVM. 2015;35(1):13-9. [ Links ]

18. Ilic S, Konstantinovic S, Todorovic Z, Lazic M, Veljkovic V, Jokovic N, et al. Characterization and antimicrobial activity of the bioactive metabolites in streptomycete isolates. Mikrobiologiia. 2007;76(4):480-7. [ Links ]

19. Arasu MV, Duraipandiyan V, Agastian P, Ignacimuthu S. In vitro antimicrobial activity of Streptomyces spp. ERI-3 isolated from Western Ghats rock soil (India). J Mycol Med. 2009;19(1):22-8. [ Links ]

20. Tripathi C, Praveen V, Singh V, Bihari V. Production of antibacterial and antifungal metabolites by Streptomyces violaceusniger and media optimization studies for the maximum metabolite production. Med Chem Res. 2004;13(8-9):790-9. [ Links ]

Citation: Ampuero A, Rojas R, Ruiz C, Hurtado J. Streptomyces sp. 6E3 antimicrobial activity isolated from mineral concentrate. Rev Peru Med Exp Salud Publica. 2020;37(1):110-4. Doi:

Funding: National Innovation Program for Competitiveness and Productivity (Innóvate Perú), under contract 235-FincyT-IA-2013.

* The present study is part of the thesis: Ampuero A. Evaluation of the antibacterial activity of Streptomyces sp. 6E3 mineral isolate against resistant methicillin Staphylococcus aureus. [Bachelor thesis].Lima: Facultad de Ciencia y Filosofía. Universidad Peruana Cayetano Heredia; 2016.

Received: April 30, 2019; Accepted: January 29, 2020

Correspondence to: Jasmin Hurtado; Av. Honorio Delgado 430, San Martin de Porres. Lima, Peru;

Authors’ contribution:

JH, AA, CR and RR have participated in the conception of the experimental work, design of the article, as well as its analysis, data interpretation and writing. In addition, AA executed the experimental work and collected data, and CR supported during the execution. All authors approved the final version of the article.

Conflict of interest:

All authors have none to declare.
