Nostoc species and hydrocolloid extraction

Nostoc species were extracted from the Cushurococha lagoon, located in the Catac district, Recuay, Ancash province, Peru (9°51'01.8 "S, 77°25'30.2" 0). The hydrocolloids obtained (Figure 1) were dried in a LABCONCO lyophilisate kit (Models 79480, USA) at a pressure of 0.004 bar with an initial freezing temperature of -40 °C; and a hot air tray dryer (CORP. JARCON model SBT-10x10) at a constant temperature of 40 ± 0.5 °C and flow of 20 m³/min, afterwards the samples are crushed and transformed into powder with a particle size < 1mm.

Nostoc proximal analysis

Moisture was determined by the gravimetric method in an oven (POLEKO, model SLW-115TD, USA) with AOAC 931.04. The ashes were calculated by incineration in a muffle (Thermo ScientificTM, Barnstead ThermolyneTM model, USA), with the AOAC 972.15 method. Proteins were determined according to the Kjedahl method (AOAC 2011.11) in a kit (Foss-LabtecTM LINE, China), the fat content was obtained in a fat extractor kit (Foss, model SOXTECTM 2043, China), according to the AOAC 963.15 methodology. Finally, the carbohydrate content was made by difference: %Carbohydrates = 100 - (%Proteins + %Fats + %Ashes + %Moisture).

Spectroscopy Analysis

Infrared spectral data was collected on an FTIR system (PerkinElmer, Waltham, MA, USA). With an attenuated total reflectance (ATR) sampling area of 2 mm in diameter. Powdered ground hydrocolloid samples (approximately 0.5 g) were placed on the ATR glass sampler. The vibrational spectrum was collected in the mid infrared region (4,000 - 650 cm^-1) with a resolution of 4 cm^-1. A total of 64 scans were used and an air background was taken before each sample.

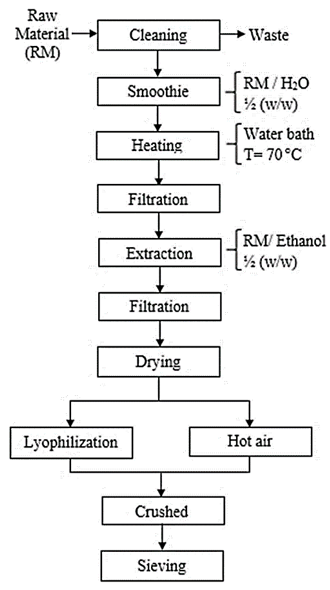

Figure 1 Process of obtaining the hydrocolloid.

Rheological analysis

Hydrocolloid powder samples were diluted in two concentrations 0.15% and 0.25% (weight/volume); and rheological analysis was performed on a Coaxial Cylinder Rheometer (Brookfield BIS-CC) at temperatures of 7, 20, 40, 60 and 80 °C; as well as under nectar conditions (12 °Brix, 4.5 pH) under the same parameters for later comparison. The data were adjusted to three models:

Preparation of nectar

The mango fruits (Mangifera indica L.) belonged to the Kent variety and were purchased from the local market in Nuevo Chimbote, Ancash, Peru. The samples presented a soluble solid concentration between 20-25 °Brix. The fruits were washed and chopped to undergo a blanching process in a vaporizer, to retard all the biochemical reactions produced by the polyphenoloxidase enzyme during processing (^{Liu et al., 2016}). A 2/1 ratio of mango pulp (g) / water (ml) was formulated, components such as sugar, citric acid and potassium sorbate were also added. The complete homogenization was carried out in a colloidal mill with a speed of 2900 rev/min for a time of 2 minutes. The mango nectar was pasteurized at 95 °C for 5 minutes. The final pH was 4 and the soluble solids were found at 12.0 °Brix. The concentration of hydrocolloids on the final formulation was 0.1% and CMC (Carboxymethyl cellulose) has been used as a control. The effect of temperature on the apparent viscosity of the hydrocolloid applied in the nectar was studied, using the Arrhenius equation η = Ae^(Ea/RT)(γ)^n-1, where: η is the viscosity apparent (Pa*s), A is a constant (Pa*s), T is the temperature (K), Ea is the activation energy of the flow (kJ/mol) and R is the constant of the ideal gases 0.0083 (kJ/mol.K).

Statistical analysis

The rheological behavior was evaluated the influence of the factors: Nostoc species, drying method and hydrocolloid concentration on the viscosity (η, k ₁ and k ₂ ). Statistical differences were estimated with ANOVA at a confidence level of 95% (p < 0.05). A comparison of means was made by Tukey's test using the Minitab statistical package version 18.

Proximal analysis of the algae and extraction of the hydrocolloid

The proximal content (Table 1) indicates that the water content between 95.7% and 96.12% for algae, ^{Rodriguez et al. (2017)} indicates that N. commune algae are mainly composed of water (97%). The protein, fiber and fat content did not present significant differences for the two Nostoc species (p < 0.05). The protein content was 1.14% for N. sphaericum and 1.21% for N. commune, however, the analysis on a dry basis determined a protein content of 28.650 and 29.408%, respectively. ^{Li and Guo (2017)} point out that the content of proteins, peptides and free amino acids constitute between 25% - 27% of N. commune and N. Flageliforme. The carbohydrate content was between 58.5% (N. commune) and 58,315% (N. sphaericum). ^{Zongjie et al. (2011)} determined in N. sphaericum 59% of polysaccharides in dry matter. The extraction yield of the algae was 0.75% (N. commune) and 0.81 (N. sphaericum) with respect to the fresh state of the algae.

FTIR Profile

The spectroscopic characteristics of the different Nostocs present similar molecular vibrations. In Figure 2 the signal at 3290 cm^-1 corresponding to hydroxyl groups O - H can be seen, which are in the range of 3600 - 3200 cm^-1 and are characteristic of water, have a low transmittance because they were placed dry samples (powder) of the Nostoc extract on the ATR surface of the FTIR equipment. The 2930 cm^-1 signal represents stretching of the C - H group characteristic of fats. 1020 cm^-1 corresponds to vibrations of C - O - C bonds corresponding to the glucose cycle, and the signal of 1596 cm^-1 corresponds to C = O bonds of carboxyl groups (presence of glucuronic acid) (^{Wang et al., 2019} ). One vibration at 792 cm^-1 is assigned to the presence of glucopyranose units, and another vibration at 897 cm^-1 corresponding to the presence of β-D-pyranosidic deformation modes (^{Liu et al., 2016}; ^{Liu et al., 2018}).

The same letters within each column are not significantly different (p < 0.05). wb: wet base.

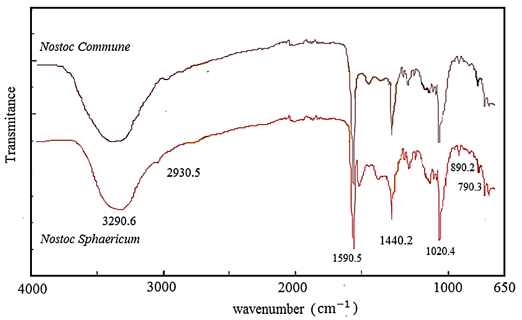

Figure 2 FTIR spectral profile of hydrocolloids.

Rheological behavior

Rheological behavior of hydrocolloids in solution

Figure 3 and 4 show the flow behavior of hydrocolloids (shear stress versus shear rate), adjusting to non-Newtonian models such as Bingham plastic and those of power law behavior such as Oswald and Herschel-Bulkley (Table 2), those that presented a high coefficient of determination (R² > 0.980).

In general, the decrease in the values of plastic viscosity (η) and consistency index (k ₁ and k ₂ ) is observed as temperature (7 - 80 °C) and concentration (0.15% - 0.25%) increase. The viscosity depends on the intermolecular distances. As temperature increases, intermolecular distances increase and viscosity will decrease, another reason is that Nostoc polysaccharides are capable of hydrolyzing at high temperature (^{El-Mansy et al., 2005}; ^{Kim and Yoo, 2011}; ^{Xu et al., 2017}, ^{Li et al., 2020}). Other hydrocolloids such as tara gum also have a significant effect on viscosity as temperature increases (^{Wu et al., 2015}). The viscosity of hydrocolloids against the effect of temperature presents a significant response in the food industry, especially in the beverage line. Most of the processes that involve heating experience the variation of temperatures at different times, therefore the response of the hydrocolloid must adapt and respond positively to these changes (^{Wu et al., 2015}). In addition, the flow behavior index (n) also suffers an increase due to the increase in temperature and concentration. The increase in concentration also influences the viscosity significantly (p < 0.05), this is due to the fact that the higher content of total solids in the dispersion produces an increase in the viscosity values, this behavior is based on the greater restriction of the intermolecular movement generated by hydrodynamic forces and the formation of an interfacial film as a result of a highly branched structure of the polysaccharide and different points of association between these molecules (^{Alpizar-Reyes et al., 2018}).

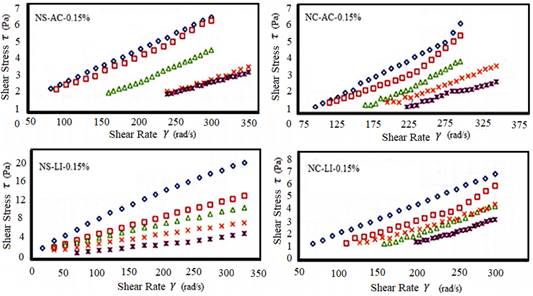

Figure 3 Rheological behavior of the hydrocolloid solution (0.15%) (N. commune and N. sphaericum) obtained by lyophilization and hot air.

N. Sphericum presented higher values of plastic viscosity (η) and consistency indices (k ₁ and k ₂ ) than N. commune for the different rheological models obtained, with the different drying methods and concentrations. ^{Jurado et al. (2014}) argues that N. sphericum has a higher viscosity than N. commune. It is evident that the drying method significantly influences the rheological properties of the studied hydrocolloids (p < 0.05).

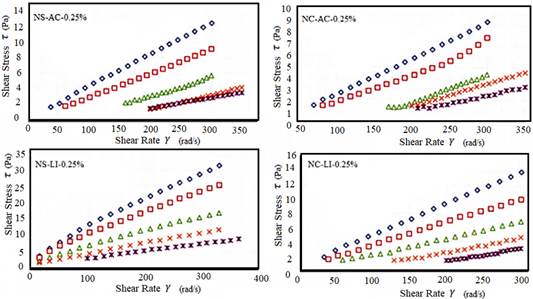

Figure 4 Rheological behavior of the hydrocolloid solution (0.25%) (N. commune and N. sphaericum) obtained by lyophilization and hot air.

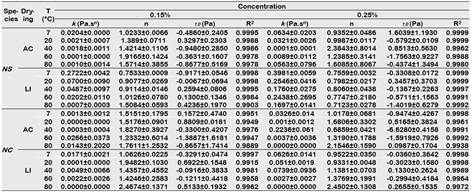

Table 2 Herschel-Bulkley model τ ₀ (Pa)

Lyophilization had higher viscosity averages than hot air. ^{Inoue-Sakamoto et al. (2018}) points to the N. commune genus as tolerant to desiccation where uronic acid is an integral component of this cosmopolitan anhydrophil. Non-Newtonian behavior is characteristic of N. sphaericum, since the chains of its polysaccharides form an interlocking three-dimensional network, depending on temperature and concentration (^{Wu et al., 2015}).

Néctar Application

The addition of hydrocolloids influences the rheological behavior of mango nectar (Figure 5). Different rheological models have been described, for example for the Bingham model (0.9555 < R² < 0.9980) where the coefficient of plastic viscosity (η) is in the order of NS-LI > NS-AC > CMC > NC-LI > NC-AC. Likewise, for the potential models Ostwald (0.9947 < R² < 0.9981) and Herschel-Bulkley (0.9982 < R² < 0.9993) the consistency indices k ₁ and k ₂ present the same trend (Table 3).

Figure 5 Rheological behavior of hydrocolloids applied in nectar at a temperature of 20 °C.

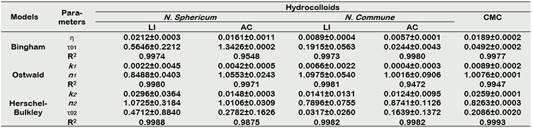

Table 3 Rheological model in nectar

Lyophilization (LI) and Hot Air (AC).

The values of the flow behavior index for the different models mostly presented a pseudoplastic behavior (n < 1) characteristic of mango pulp (^{Figueroa-Flórez et al., 2017}). It can be established that N. Sphericum significantly influences the formulation of mango nectar compared to N. Commune, these properties can be used to formulate beverages.

To determine the flow activation energy (Ea) of the different treatments, a temperature sweep (7 - 20 °C) was carried out. From the Oswald potential model: τ = k(γ)ⁿ, characteristic of mango nectars (^{Ortega et al., 2015}) and with the definition of apparent viscosity η = τ / γ has been replaced in the Arrhenius equation to determine the activation energy Ea, by means of the linear regression slope: Ln (k) = Ln (A) + (Ea/RT). Finding an activation energy between 15.896 and 19.442 kJ/mol, for all the formulated nectars, these results with similar to the Ea presented by ^{Kumar et al. (2015}) on the rheology of mango nectar. The nectar with CMC presented statistically significant values with all the hydrocolloids studied (p < 0.05). Greater activation energy represents greater stability against biochemical deterioration reactions (^{Villanueva et al., 2017}). However, in rheology, flow activation energy refers to how the increase in the temperature of the fluid leads to an increase in molecular mobility and with it, an increase in intermolecular spacing is generated, causing a decrease in resistance in the flow, and as a result a drop in viscosity occurs. Therefore, a higher flow activation energy value (Ea) indicates a greater influence of temperature on the consistency coefficient (k) or the viscosity (^{Kumar et al., 2015}). This phenomenon was observed in dispersions corresponding to the studies of chia mucilage, xanthan gum and linseed gum (^{Capitani et al., 2015}; ^{Alpizar-Reyes et al., 2018}).

Our results in Table 4 indicate how there is less influence of temperature on the consistency index (k) for the hydrocolloids of Nostoc species than CMC in the order of: N. sphericum < N. commune < CMC. Therefore, the hydrocolloids obtained from these two species of algae confirm their potential as a thickening additive in nectars and as a possible food with functional characteristics, their application as substitutes for CMC are a viable possibility.
