INTRODUCTION

The Peruvian population has undergone a sociodemographic transition with a decrease in the mortality rate, a larger economically active population, and population aging, with a greater presentation of chronic-degenerative diseases to the detriment of infectious diseases¹. Among this group of now frequent diseases are dorsopathies, located in a sixth place of morbidity for outpatient consultation, with 3.2%, and which occurs in all stages of adult life: 2.4% in young adults, 5.6% in adults and 6.9% in older adults, and even in teenagers, with 1.3%, a situational context that had not occurred in recent decades².

In this way, an adequate evaluation of the spine is of utmost importance, especially at the level of the lumbosacral spine, since in this region there is greater symptomatology, being the objective of clinical and especially radiological review because it is the most useful diagnostic. Currently, magnetic resonance images stand out for allowing the visualization of anatomical information at the spinal and vertebral level with high contrast resolution, having as a fundamental part the T2-weighted image sequence that demonstrates the differentiation between cerebrospinal fluid with the other structures of the vertebromedullary region. Therefore, it has a sensitivity and specificity of 85.5%, close to 100% in oncological and inflammatory pathology^3,4.

However, traditionally the clinical and especially radiological evaluation of the spine in general has been limited to the region that is presumed to be affected by various limitations, despite the fact that not all pathological types will affect a single region, such as herniated discs with a greater lumbosacral settlement, spondyloarthropathies in the lower back with the likelihood of involvement in adjacent segments, and others that are clinically silent such as vertebral hemangiomas, located mainly at the dorsal level but also at other levels^5,6.

Based on this, some method is required to visualize the total spine, such as the panoramic sequence or also called panoramic image, which makes it possible to see the spine in a single sequence with modern magnetic resonance imaging systems. This allows the acquisition of images in the sagittal plane of the entire axis of the spine, taking only a few additional minutes compared to the traditional examination, without the need for repositioning the patient, and only planning it from the acquisition station in the MRI Scanning Room, where the acquisition time will vary according to each sequence^7,8.

The technique is based on a direct application of the Composing Software, which allows to show an image resulting from other sequences that were acquired in advance. This was traditionally only done in a later post-processing of images, but now it can be obtained automatically by pre-planning the sequences of interest in alignment with what your acquisitions are achieved with the composite image minutes later. This possibility means a notable optimization in terms of the use of extra time and additional platform for image post-processing^8,9.

Considering that the T2 sequence is a pattern and a basic part of any study of the spinal cord, the fact of using a panoramic sequence enhanced in T2 would be of great contribution and utility to the usual study of the lumbosacral spine; this is because it would allow additional information to be obtained. Therefore, its analysis would serve as a recommendation to opt for its performance due to its contribution and benefit in the diagnosis. In view of this, the objective was to analyze the application of this sequence for the study of the lumbosacral spine by magnetic resonance imaging (MRI).

METHODS

Population and sample

The population was made up of 357 patients who had MRI of the lumbosacral spine, whose sample was obtained with the proper formula for a finite population:

In the formula, a prevalence equivalent to 0.5 was considered, with a precision of 0.05 and a significance level of 0.05, resulting in a sample of n = 186 cases. The applied sampling was stratified probabilistic, whose criterion was to consider the life stages included in the cases, both young adults aged 18-30 years and adults properly speaking aged 31-60 years. The population comprised 71 young adults and 286 adults, with which 37 cases of young adults and 149 cases of adults were selected under the same degree of proportionality, all randomly assigned, thus making up 186 cases of the total sample.

RESULTS

The ages of the patients who had magnetic resonance imaging ranged from 18 to 60 years and the median achieved was 40 years. Reviewing the selected cases based on life stage, adults themselves (from 31 to 60 years) were 80.1%, while young adults (from 18 to 30 years) represented 19.9%. Likewise, the female gender constituted 53.8% and the male gender 46.2%, and in which total of cases the most frequent diagnostic presumption was the herniated discs, with 52.7%.

In general, of 186 examinations in total, there were 5 cases that presented a normal diagnosis in the traditional study and with the application of panoramic T2 sequence. Therefore, the remaining 181 cases had some finding, regardless of the acquired segment of the spine. Of these 181 mentioned, the usual lumbosacral study had a total of 414 findings.

In the lumbosacral spine, degenerative pathologies were seen as the most frequent findings, occurring in 93% of cases. Of these, herniated discs were the most common with 57%, the majority of which comprised disc extrusion in 40.6%. Likewise, there were disc protrusion in 37.9% and in fewer disc migration with only 21.5%, continuing with lumbar disc degeneration and modic changes with 19.5% and 9.9% respectively, having as a finding less frequent to spondylolysis with only 0.5%. The other findings were congenital anomalies (5.3%) and neoplastic pathology (1%, represented by hemangiomas as the only type of tumor) and, with less than 1% of cases, there were inflammatory pathologies (0.5%) and traumatic injuries (0.2%). Among the congenital anomalies, the so-called transition anomalies stood out, such as lumbarizations in 50% (conversion of the S1 vertebra) and sacralizations in 36.4% (conversion of the S5 vertebra). Herniated discs located in the lumbosacral spine were 52.9%: disc extrusion accounted for 21.5%, disc protrusion accounted for 20%, while only 11.4% were disc migration, given in 167 patients (Table 1).

Likewise, it is worth mentioning that the application of panoramic T2 sequence in the 181 previously mentioned cases allowed to denote additional findings at the cervical spine and dorsal spine, which were 117 and 71, that is, 188 additional findings, thus constituting a total of 602 findings when acquiring the MRI exam with the panoramic sequence included.

At the level of the cervical spine, there were basically degenerative pathologies in 99.1%, highlighting herniated discs with 59.5%. Of this total, 58% comprised disc protrusion (especially in the C5-C6 disc), disc extrusion in 39.1% and finally disc migration in 2.9% (Figure 1), followed by 28, 4% due to disc degenerations. It should be mentioned that congenital anomalies were also presented in 0.9%, represented by hydrosyringomyelia. It should be noted that localized hernias accounted for 59% of cervical lesions, which in turn included disc protrusion in 34.2%, while 23.1% consisted of disc extrusion and only 1.7% were disc migration (Table 2).

In the dorsal spine there was also a higher percentage of degenerative pathologies with a frequency of 81.7%, where herniated disc predominated in more than half of the cases (51.7%), including disc protrusion with 70% (especially in the D7-D8 disc) and disc extrusion with 30% (Figure 1); apart from Schmörl's nodules with 24.1% and disc degenerations with 20.7%. The remaining 18.3% in the dorsal segment corresponded to neoplastic pathologies, whose lineage was specifically vertebral hemangioma. The dorsal hernias presented were 42.3% of the total findings, comprising disc protrusion and disc extrusion in 29.6% and 12.7% respectively. Therefore, the main findings located outside the lumbosacral spine were hernias, which occurred in 77 patients, both at the cervical level, with 59%, and at the dorsal level with 42.3% (Table 2).

Regarding the location of herniated discs at the level of the lumbosacral spine, which has been the most frequent lesion, it occurred mainly at the level of the L5-S1 disc in 42% of cases, although it also occurred in the other intervertebral discs: L4- L5 with 39.7%, L3-L4 with 12.3%, L2-L3 with 3.2% and L1-L2 with 2.3%. The L5-S1 disc was the main location of disc extrusion and disc migration, with 44.9% and 55.1% respectively, unlike protruding hernias located mainly in the L4-L5 disc, with 44.6% (graphic 1 ).

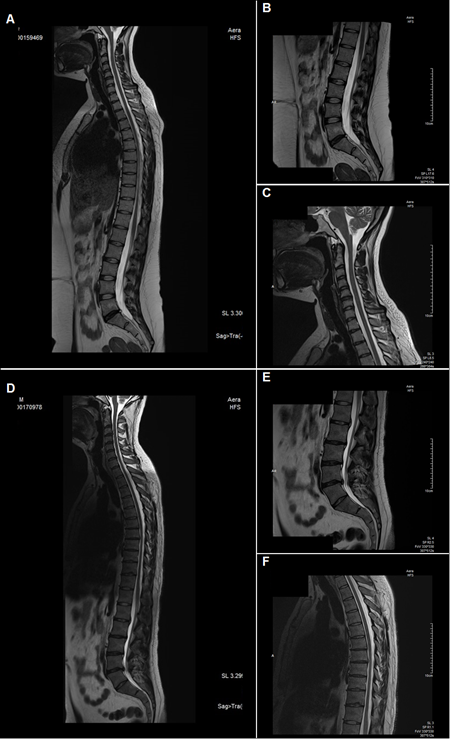

Graphic 1 MRI of 2 cases with application of panoramic T2 Sequence: 1. 29-years-old pt. (A), where disc extrusion in L5-S1 is denoted as well as disc protrusion in C5-C6 (images B and C respectively). 2. 39-year-old pt. (D), where disc extrusion in L4-L5 is denoted as well as disc protrusion in D7-D8 (images E and F respectively).

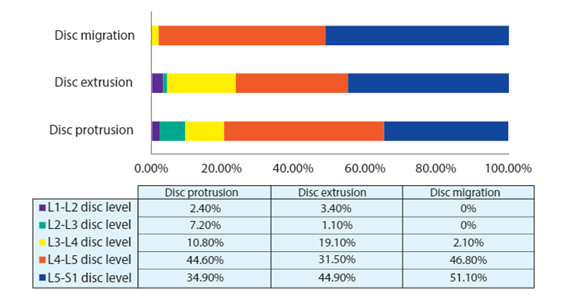

Graphic 2 Anatomical location of Herniated lumbar disc

The application of the panoramic T2 image for examination of the lumbosacral spine by magnetic resonance imaging was verified using hypothesis testing for a proportion, taking into consideration that, as H₀, the technique does not allow 50% more findings to be located than in a regular examination, and that, as H₁, the technique does allow 50% more findings to be located in contrast to a regular test. In this way, the Sig value of the corresponding Z_calwas obtained from the findings at the level of the lumbosacral segment in the conventional exam and the amount of findings obtained by adding the panoramic T2 sequence, obtaining Sig = 0.031, which being less than 0.05, rejecting the null hypothesis and therefore at 95% confidence level, it can be stated that the application of this. This sequence does allow 50% more findings to be located, showing that it is useful for MR imaging of the lumbosacral spine.

DISCUSSION

The results demonstrate that the application of the panoramic T2-weighted sequence for the lumbosacral spine examination is valid. Therefore, the importance of magnetic resonance imaging in the evaluation of the spine is first reaffirmed, as stated by Aroche¹⁰and Medina¹¹. Second, that requests for examination with a specific presumption justify their performance for a due evaluation, since they allow to see early changes and/or incipient lesions and thus have a clinical relevance, as explained by Fretes¹², Kovacs¹³, Millán and Cols¹⁴, and Rodríguez¹⁵.

Analyzing, the hypothesis verification defined that 50% more findings are located with the panoramic sequence in question, unlike the usual study. This is similar as reported by Méndez¹⁶, which obtained 74.8% of additional findings using STIR sequence, applying post-process after examination and considering elderly patients. In addition, what is proposed by Schiappacasse¹⁷and Campos¹⁸is supported, where it was proposed to use a sagittal sequence for the entire column. It also confirms what was concluded by Burbano¹⁹and Campos¹⁸, where the T2-weighted image was superior for the various anomalies. In relation to this, what was expressed by Tito²⁰, is corroborated, who indicated the importance of including this sequence in the examination of an image that reveals adjacent lesions to those presented in the specific initial evaluation segment.

Reviewing the findings, there was the presence of a greater number of degenerative pathologies, with 93% of findings. The main ones were herniated discs, with a frequency of 60%, which coincided with the studies by Ortega²¹at the Centro Médico Ecatepec, of the Instituto Mexicano de Seguridad Social, with the studies by González²²at the Hospital Universitario Nacional de Colombia, and with the findings of Enríquez²³in the Clínica Pichincha, whose results were also the most outstanding, with 40.2%, 33.7% and 32.7% respectively. The highest percentage were disc extrusion, in 40.6%, then protruding hernias, with 37.9%. These findings were different and at the same time with a lower percentage compared to the studies by Ortega²¹and González²², as well as the study of hernias carried out by Solano and Ávila²⁴at the Hospital Carrasco de Cuenca, of the Instituto Ecuatoriano de Seguridad Social, in which disc protrusions were mainly presented, with figures equivalent to 73.3%, 87.6% and 96.7% in each case.

Similarly, it was found that the main location of the different types of hernias presented was mainly at the level of the L5-S1 disc in 42% of cases. This result coincided with the theses of Gil²⁵in a Sanitary Production Company of Lima, with those of Rivero²⁶in the Hospital Nacional Dos de Mayo of the Ministry of Health, with those of Quispe²⁷in the Clínica La Luz de Lima, that of Medina²⁸in the Hospital Nacional “Ramiro Prialé Prialé”, of the Social Security - EsSalud, and with those of Román²⁹in the Hospital Nacional “Luis N. Sáenz” of the Peruvian National Police, in whose results it was also the main location, with 66%, 62%, 39.1%, 34.4% and 34% respectively, fully endorsing that it is the most affected intervertebral disc in people regardless of the activity that could develop and the population group to which they could belong. Likewise, findings were obtained in both the cervical and dorsal spine, acquiring the panoramic T2 sequence. In both segments, the highest frequency was also given by herniated discs presented in 59.5% and 51.7% of cases, respectively. With this, it is confirmed that herniated discs are the most frequent pathology of the entire spinal axis, and not only at the lumbosacral level. Clinically, the latter is the area with the greatest symptomatological settlement due to the presence of some typical risk factors of the activity, workload or rhythm of people's lives.

CONCLUSION

Through the present investigation, it was reaffirmed that the lumbosacral spine resonance is a valuable exam because it allows the discard and/or evaluation of multiple findings with precision through the possibility of differentiation. Degenerative entities are the most frequent, and it was shown that the acquisition of the panoramic image in T2 is useful because it helps to locate a greater number of conditions at the general level of the spine as in non-contiguous segments. Therefore, this sequence should be considered as a fundamental element to find additional information that contributes to a better diagnosis, compared to the usual lumbosacral magnetic resonance.

In this way, it was determined that the application of the panoramic T2 Sequence for lumbosacral magnetic resonance is absolutely functional and useful in the diagnostic evaluation because it allows locating 50% more additional findings compared to the usual study of the lumbosacral segment. The main findings in the lumbosacral segment, as well as at the cervical and dorsal level, were degenerative diseases, predominantly herniated discs in a greater proportion. The most frequent lumbosacral location was the L5-S1 disc.
