INTRODUCTION

Thyroid radiofrequency ablation (RFA) is a medical intervention designed to address benign thyroid nodules (BTN), utilizing radiofrequency energy to selectively destroy abnormal cells while preserving the surrounding tissue^1,2.

In the RFA procedure, alternating current with a variable frequency between 200 and 1200 kHz is used, thereby generating localized thermal energy and raising the temperature to a range of 50 to 100 °C¹. This results in both direct and indirect heating. The area of direct heating, close to the electrode, has a high current density that generates heat through friction, causing immediate damage to the tumoral tissue, especially in regions near the electrode. On the other hand, conduction heat propagates to more distant tumoral tissues through thermal conduction¹(Figure 1).

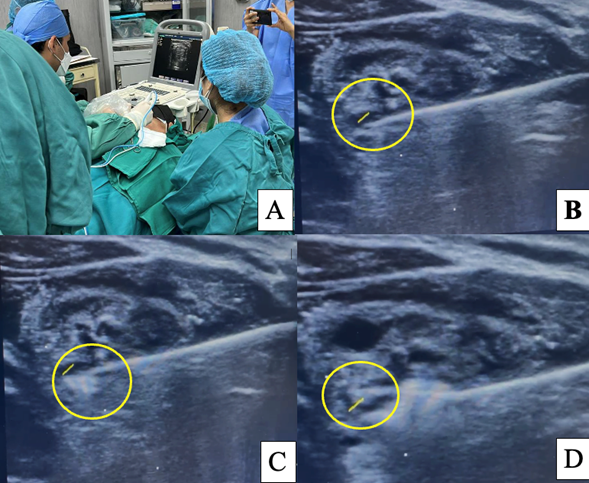

Figure 1 Ultrasound-guided Radiofrequency Ablation (RFA) Procedure in the surgical center of Hospital Santa Rosa, Lima, Peru.

The tip of the electrode is inserted into the deepest part of the nodule and gradually withdrawn towards the superficial layers, ensuring a margin of normal thyroid tissue. Five percent dextrose is applied for hydrodissection. In some cases, a saline solution can be used as a buffer to protect adjacent structures¹.

RFA is an innovative minimally invasive therapeutic option in the treatment of benign thyroid nodules and selected cases of low-risk thyroid cancer, preserving thyroid function without the need for replacement therapy. Additionally, the absence of scars contributes to a higher level of patient satisfaction^3-5.

We aim to present the results supporting the feasibility of radiofrequency ablation as a potential effective therapeutic strategy to improve the quality of life for patients with thyroid nodules, offering a promising alternative to conventional surgical interventions^1,5,6.

In this regard, we present Hospital Santa Rosa located in Lima, Peru, as the first hospital within the MINSA network to perform this type of procedure, becoming the first public hospital to offer multiple treatment approaches for thyroid nodules: RFA, transoral endoscopic thyroidectomy, conventional thyroidectomy, and active surveillance.

Case Report

A 56-year-old female patient from Lima with a history of glaucoma, hypertension, and prediabetes. She presents a 4-year clinical history characterized by the progressive growth of a nodular mass in the right thyroid lobe.

In May 2022, the patient sought medical attention at the oncology service, head, and neck clinic of HSR due to the increase in the size of the right thyroid nodule. A thyroid ultrasound was performed, revealing a nodule in the right thyroid lobe with dimensions of 50.87 x 39.89 x 34.54 mm, a volume of 36.8 ml, and a thyroid profile within the normal range (Figure 2A).

Subsequently, a Fine Needle Aspiration Biopsy (FNAB) was performed, with a pathological result classifying the nodule as Bethesda II (Benign). Initially, surgical treatment (thyroidectomy) was offered, but the patient declined surgery.

In October of the same year, the patient returned to the oncology service at the head and neck clinic of HSR for reevaluation, without significant clinical changes or alterations in ultrasound studies. The option of undergoing RFA was explained and offered to her, detailing the benefits and main characteristics of the procedure.

Figure 2 Clinical and Ultrasound Changes in Thyroid Nodule Before and 6 Months After Radiofrequency Ablation.

The RFA procedure was successfully performed on an outpatient basis in November 2022. The patient tolerated it well and experienced no complications during the procedure. Aseptic and antiseptic measures were taken, and 2% lidocaine without epinephrine was infiltrated into the anterior cervical region. The thyroid nodule was identified via ultrasound, hydrodissection was performed with 5% dextrose, and RFA was then carried out. RFA is an outpatient procedure performed in an operating room under local anesthesia, using lidocaine at the puncture site and thyroid capsule. During the procedure, the patient is placed in a supine position with neck extension, while the operator, positioned at the patient's head, evaluates the nodule's position using ultrasound. A high-frequency linear probe is used to select the most appropriate approach and to monitor and guide the ablation procedure. All of this is done under strict aseptic conditions, emphasizing the safety and control of the procedure (Figure 1).

At the 6-month follow-up, ultrasound revealed a notable reduction in the nodule size to 39.07 x 21.41 x 25.77 mm (volume 10.72 ml), (Figure 2 C ) with positive results, symptom reduction, and a thyroid profile within normal limits.

Discussion

This case report highlights the evolution in the treatment of benign thyroid nodules (BTN) traditionally managed with conventional methods such as thyroidectomy or hemithyroidectomy¹. In the last decade, minimally invasive techniques like radiofrequency ablation (RFA) have been proposed, emerging as a percutaneous minimally invasive option to treat benign nodules of the thyroid and parathyroid glands. Initially considered an alternative to surgery, RFA has gained importance, demonstrating its efficacy in both solid and partially cystic nodules, including cases of differentiated thyroid cancer^5-7.

It has been proven that RFA effectively reduces nodule volume with low complication rates and significant improvements in related symptoms, as observed in our case⁵. This approach avoids the adverse effects of surgery, such as the risk of bilateral recurrent laryngeal nerve injury, hypocalcemia, hypoparathyroidism, and the need for hormone replacement due to resection^3-9.

In a systematic review conducted by Wang et al. in 2017, which aimed to examine the safety of RFA as a treatment method for benign thyroid nodules, it was found that out of 3,409 patients, 89% did not experience complications, while 8% reported pain and a sensation of heat, 0.9% experienced voice changes, 0.9% had hematoma, 0.1% had a vasovagal syncope, and less than 0.1% had other complications. This indicates that RFA is a procedure with a broad range of safety^3,10(Figure 3).

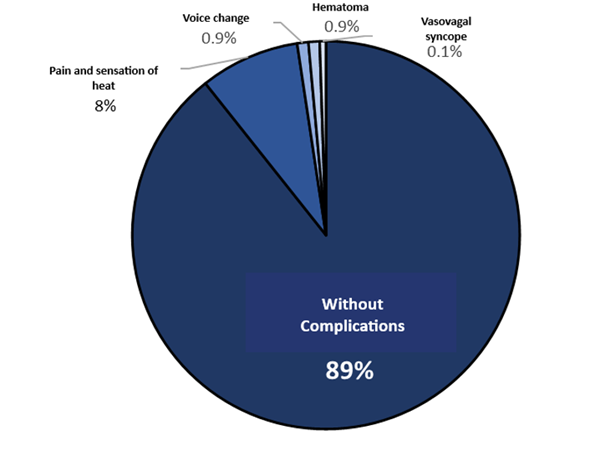

Figure 3 Percentage of Complications of Radiofrequency Ablation. Adapted from Wang et al. 2017.

Thyroid nodules subjected to thermal ablation should undergo regular follow-up through ultrasound and clinical examinations. Ultrasound is established as the most reliable method for monitoring the progression of treated nodules over time, including measurements of size, volume, and vascularization, as well as the evaluation of cosmetic scores and symptoms. The effectiveness of the treatment is assessed by the volume reduction rate (VRR), which is progressive, with the final reduction typically evident at an average of 12 months^1,4,11.

CONCLUSION

In conclusion, this report suggests the RFA technique as an effective and minimally invasive alternative to traditional surgery for the treatment of benign thyroid nodules. Through the case of a 56-year-old female patient, within just 6 months, the thyroid nodule reduced its volume from 36.8 ml to 10.72 ml, corresponding to a Volume Reduction Rate (VRR) of 70.85%. Compressive symptoms are no longer present, the thyroid profile is normal, the thyroid nodule is not visually evident, and the patient's satisfaction level is high. Literature has demonstrated that volume reduction is progressive, with the final reduction typically evident at an average of 12 months.

This approach represents a significant change in clinical practice at Hospital Santa Rosa and other public hospitals in Peru, highlighting the multiple treatment approaches for thyroid nodules: RFA, transoral endoscopic thyroidectomy, conventional thyroidectomy, and active surveillance. The safety of the procedure, combined with its outpatient nature and ultrasound guidance, underscores RFA as a valuable and safe option for the treatment of thyroid nodules, marking a significant milestone in the care of these cases in hospital settings.
